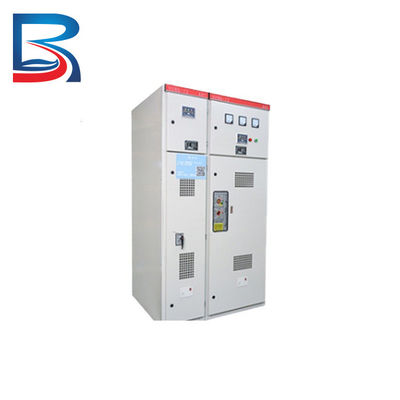

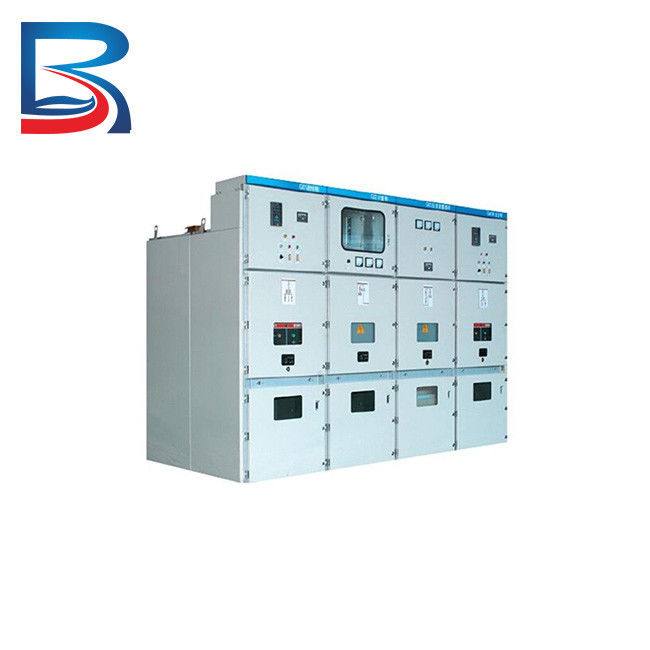

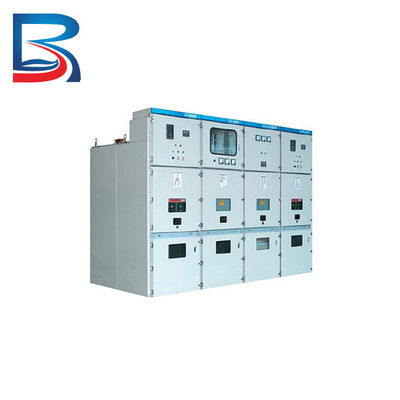

SF6 Insulated Air Insulated Gas Insulated 11KV High Voltage Switchgear Panel

SF6 Insulated Air Insulated Gas Insulated 11KV High Voltage Switchgear Panel

  • SF6 Insulated Air Insulated Gas Insulated 11KV High Voltage Switchgear Panel
  • SF6 Insulated Air Insulated Gas Insulated 11KV High Voltage Switchgear Panel
SF6 Insulated Air Insulated Gas Insulated 11KV High Voltage Switchgear Panel
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: 11KV High Voltage Switchgear Panel ODM/OEM: Accepted
Color: As Required Certificate: ISO,9001 CQC,CCC,CE
Packing: Wooden Case Payment: T/T L/C

SF6 Insulated Air Insulated Gas Insulated 11KV High Voltage Switchgear Panel



Product Introduction

  • An 11KV High Voltage Switchgear Panel is a critical component in any electrical power system, as it provides a means of controlling and protecting the electrical equipment and circuits at a medium voltage level.
  • The switchgear panel is typically used in power distribution systems, including those used in industrial, commercial, and residential areas.
  • The panel may be designed to operate in various environmental conditions, including indoor and outdoor applications, and may need to be rated for specific conditions such as temperature, humidity, and corrosive or explosive atmospheres.
  • The switchgear panel may include various types of electrical components, including circuit breakers, disconnectors, fuses, and other protective devices that are used to interrupt the electrical current in the event of a fault.
  • The panel may use various types of circuit breakers, such as vacuum circuit breakers or SF6 gas circuit breakers, depending on the specific requirements of the application.
  • The switchgear panel may be designed to meet various international standards, such as IEC and ANSI, ensuring that it meets the highest quality and safety standards.
  • 11KV High Voltage Switchgear Panel may be customized to meet specific customer requirements, and may include features such as remote monitoring and control, automation, and communication capabilities.
  • The switchgear panel may be equipped with advanced digital monitoring and control systems, allowing for real-time monitoring of the electrical system and enabling remote operation.
  • The panel may be designed to be compact and space-saving, utilizing modular construction techniques to allow for easy installation and maintenance.
  • 11KV High Voltage Switchgear Panel is an important component in ensuring the safety, reliability, and efficiency of electrical power systems.

Main Technical Parameters



Main Technical Parameters Specifications
Rated voltage 40.5KV
Rated frequency 50Hz
Rated current of the main busbar 1250A, 1600A, 2000A
Rated insulation level 1min power frequency withstand voltage 95KV between phases and relative, 115KV for the first isolating joint
Lightning impulse withstand voltage 185KV between phases and relative, 215KV for the first isolating joint
1min power frequency withstand voltage of the auxiliary control circuit 2KV
Dimensions (widthdepthheight) 1400*2800(3000)*2800
Rated current of branch busbar 630A, 1250A, 1600A





Company Profile



SF6 Insulated Air Insulated Gas Insulated 11KV High Voltage Switchgear Panel 0



1.Chongqing Bosun Electrical Co., Ltd. was established in 1996, located in Banan District Chongqing China, with convenient transportation, covers an area of 8,000 square meters.



2.Devoted in the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment from 40.5kV to 0.22kV.



3.more than 20 CCC/CQC certificates, meet the requirements of the highest protection level of IP65 and altitude environment of 4500 meters, get the GB/T19001:2016 /ISO9001:2015 quality management system certification,



4.A complete product development department, design team.



5.Various kinds of product construction and manufacturing design by using specialized computer mechanical and electrical CAD design software systems.



6.Complete surveillance, measuring, and testing equipment to ensure the high products quality.



7.Complete production line including CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.



8.More than 10 product invention patents and utility model patents.



9.Excellent service based on the motto "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement,"





Production Facilities



SF6 Insulated Air Insulated Gas Insulated 11KV High Voltage Switchgear Panel 1







FAQ



1. Are you the manufacturer or trader?

"Bosun Electrical " is a leading & professional manufacturer in China.



2. How to order your products?

Please send us your single line diagram (SLD ) for your projects ,or send us the detailed specifications for your required items

.

3. What is your delivery & after-sales serive?

Leading delivery is according to your order qty .Normally for container orders it is 1-2 weeks. Per month 30-50 containers are no problem for us.



4. What is your product warranty?

"Bosun Electrical " is ISO9001 & CCC certificated enterprise in China, we supply longlife free maintenance.

Furthermore,our technology team & RD team can go to solve any possible or inevitable problems by our latest technology support.



5.Do you accept OEM and ODM?

Yes



6. What is your payment terms?

a. 30% T/T in advance as deposit ,balanced against the shipping documents and copy of B/L

b. irrevocable L/C at sight for order which order amount is over $0.1 million .

C. for old business partner,we can negociate for other special terms

d . For samples, we accept T/T,Western union, Alibaba pay,Alibaba trade assurance



7. If i want to visit you ,how to do ?

Our company is located in Chongqing city China, If you need invitation letter before come to China,we can give it to you.
