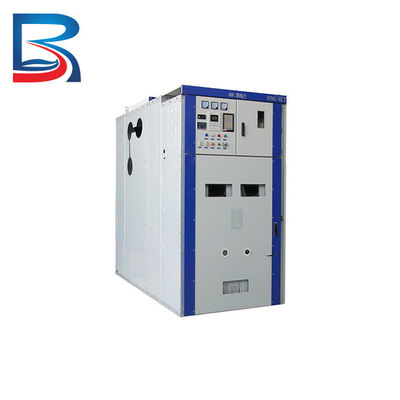

Ourdoor Type Metal Enclosed Withdrawable Drawout High Voltage Switchgear

Ourdoor Type Metal Enclosed Withdrawable Drawout High Voltage Switchgear

  • Ourdoor Type Metal Enclosed Withdrawable Drawout High Voltage Switchgear
  • Ourdoor Type Metal Enclosed Withdrawable Drawout High Voltage Switchgear
Ourdoor Type Metal Enclosed Withdrawable Drawout High Voltage Switchgear
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Drawout High Voltage Switchgear Insulated: Gas
Certificate: ISO,9001 CQC,CCC,CE ODM/OEM: Accepted
Packing: Wooden Case Payment: T/T L/C

Ourdoor Type Metal Enclosed Withdrawable Drawout High Voltage Switchgear





Products Introduction



  • Drawout High Voltage Switchgear is a type of electrical switchgear that allows the circuit breaker to be removed from the switchgear for maintenance or replacement without shutting down the entire system.
  • It is typically used in high voltage applications such as power generation, transmission, and distribution systems.
  • The switchgear consists of a metal enclosure that houses the electrical components, including the circuit breaker and other protective devices.
  • The circuit breaker is mounted on a trolley or carriage that can be easily removed from the switchgear for maintenance or replacement.
  • Drawout High Voltage Switchgear is designed for ease of operation and maintenance, allowing for quick and efficient replacements of faulty components without interrupting power to the system.
  • The switchgear may be designed for indoor or outdoor use and may need to be rated for specific environmental conditions such as temperature, humidity, and corrosive or explosive atmospheres.
  • Drawout High Voltage Switchgear is an important component of high voltage electrical systems, providing a safe and reliable means of controlling and protecting electrical equipment and circuits.

Main Technical Parameters



Main Technical Parameters Specifications
Rated voltage 40.5KV
Rated frequency 50Hz
Rated current of the main busbar 1250A, 1600A, 2000A
Rated insulation level 1min power frequency withstand voltage 95KV between phases and relative, 115KV for the first isolating joint
Lightning impulse withstand voltage 185KV between phases and relative, 215KV for the first isolating joint
1min power frequency withstand voltage of the auxiliary control circuit 2KV
Dimensions (widthdepthheight) 1400*2800(3000)*2800
Rated current of branch busbar 630A, 1250A, 1600A





Production Facilities



Ourdoor Type Metal Enclosed Withdrawable Drawout High Voltage Switchgear 0





Team Show



Ourdoor Type Metal Enclosed Withdrawable Drawout High Voltage Switchgear 1



1.Expert team



2.Full range of services



3.Rigorous quality management



4.Thorough inspection



5.Accountability assurance





Engineering



1.Electricity generation facilities



2.Electrical substations



3.Business premises



4.Information processing centers



5.Sustainable energy systems



6.Transportation systems
