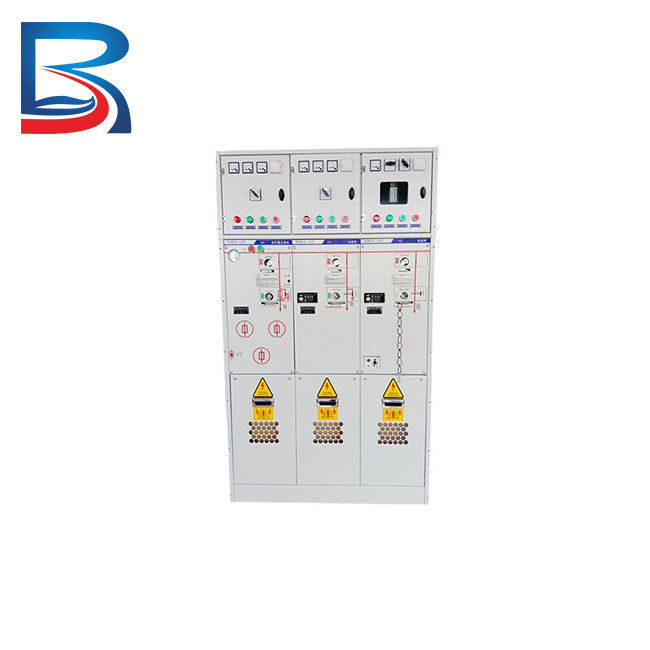

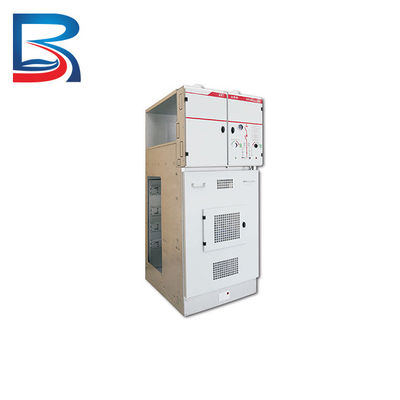

40.5KV Electrical Intelligent High Voltage Switchgear Organization

40.5KV Electrical Intelligent High Voltage Switchgear Organization

  • 40.5KV Electrical Intelligent High Voltage Switchgear Organization
  • 40.5KV Electrical Intelligent High Voltage Switchgear Organization
40.5KV Electrical Intelligent High Voltage Switchgear Organization
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Intelligent High Voltage Switchgear Organization ODM/OEM: Accepted
Color: As Required Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

40.5KV intelligent switchgear

,

40.5KV intelligent switchgear organization

,

40.5KV Electrical High Voltage Switchgear

High Voltage Electrical Intelligent High Voltage Switchgear Organization





Product  Description



  • The High Voltage Electrical Intelligent High Voltage Switchgear Organization refers to the intelligent high-voltage switchgear system that is used in electrical power systems to control, protect, and monitor the power system.
  • The intelligent high-voltage switchgear system is designed to operate at high voltage levels, typically 72.5kV and above, and is used for power transmission and distribution.
  • The organization is made up of several components, including switchgear panels, control panels, and protection panels, which are all integrated into a single system that can be controlled and monitored from a central location.
  • The system is designed to be highly reliable and efficient, with advanced features such as real-time monitoring, fault detection, and self-diagnosis capabilities.
  • The intelligent high-voltage switchgear system is also designed to be highly flexible and adaptable, with the ability to be customized according to the specific requirements of the power system.
  • The organization is typically used in large-scale power generation and transmission systems, such as those used in power plants, substations, and industrial facilities.
  • The High Voltage Electrical Intelligent High Voltage Switchgear Organization plays a critical role in maintaining the stability and reliability of the power system, ensuring that electricity is delivered to customers in a safe and efficient manner.
  • The organization is constantly evolving and improving, with new technologies and features being developed to improve its performance and adaptability to changing power system requirements.



Main Technical Parameters



Main Technical Parameters Specifications
Rated voltage 40.5KV
Rated frequency 50Hz
Rated current of the main busbar 1250A, 1600A, 2000A
Rated insulation level 1min power frequency withstand voltage 95KV between phases and relative, 115KV for the first isolating joint
Lightning impulse withstand voltage 185KV between phases and relative, 215KV for the first isolating joint
1min power frequency withstand voltage of the auxiliary control circuit 2KV
Dimensions (widthdepthheight) 1400*2800(3000)*2800
Rated current of branch busbar 630A, 1250A, 1600A





Company Profile



40.5KV Electrical Intelligent High Voltage Switchgear Organization 0





  1. Chongqing Bosun Electrical Co., Ltd. was founded in 1996 and is located in the Banan District of Chongqing, China. The company covers an area of 8,000 square meters and benefits from convenient transportation links.
  2. The company is dedicated to the research and development, manufacturing, installation, and sales of complete sets of high and low voltage switchgear and control equipment, ranging from 40.5kV to 0.22kV.
  3. Chongqing Bosun Electrical holds more than 20 CCC/CQC certificates and meets the requirements of the highest protection level of IP65 and altitude environment of 4500 meters. The company has also attained the GB/T19001:2016 /ISO9001:2015 quality management system certification.
  4. The company has a complete product development department and design team.
  5. Various types of product construction and manufacturing designs are created using specialized computer mechanical and electrical CAD design software systems.
  6. The company uses complete surveillance, measuring, and testing equipment to ensure the high quality of its products.
  7. A complete production line is in place that includes CNC processing equipment, welding equipment, and hoisting equipment required for cabinet production, busbar bending equipment, tinning equipment, electric tools, and other assembly production equipment required for complete assembly production.
  8. Chongqing Bosun Electrical has received more than 10 product invention patents and utility model patents.
  9. The company is committed to providing excellent service based on its motto of "Quality First, Customer Foremost, Survival Through Quality, Development Through Service, Continuous Improvement."
  10. The company has a strong focus on innovation and is constantly investing in research and development to stay at the forefront of the industry. They have a team of experienced engineers and technicians who are dedicated to developing new products and improving existing ones.
  11. In addition to high and low voltage switchgear and control equipment, Chongqing Bosun Electrical also offers a range of other electrical products, including transformers, power distribution cabinets, and electrical accessories.
  12. The company has a strong commitment to quality, and all of its products are designed and manufactured to meet or exceed international standards. They use high-quality materials and employ strict quality control measures throughout the production process to ensure that their products are reliable and durable.
  13. Chongqing Bosun Electrical has a strong reputation both domestically and internationally, and has exported its products to countries all over the world, including Southeast Asia, the Middle East, and Africa.
  14. The company is committed to providing excellent customer service and has a team of knowledgeable and experienced professionals who are dedicated to helping customers find the right products for their needs and providing ongoing support and assistance.
  15. Chongqing Bosun Electrical is also committed to sustainability and environmental responsibility, and strives to minimize the environmental impact of its operations and products. They have implemented a range of measures to reduce energy consumption and waste, and are constantly looking for new ways to improve their environmental performance.
