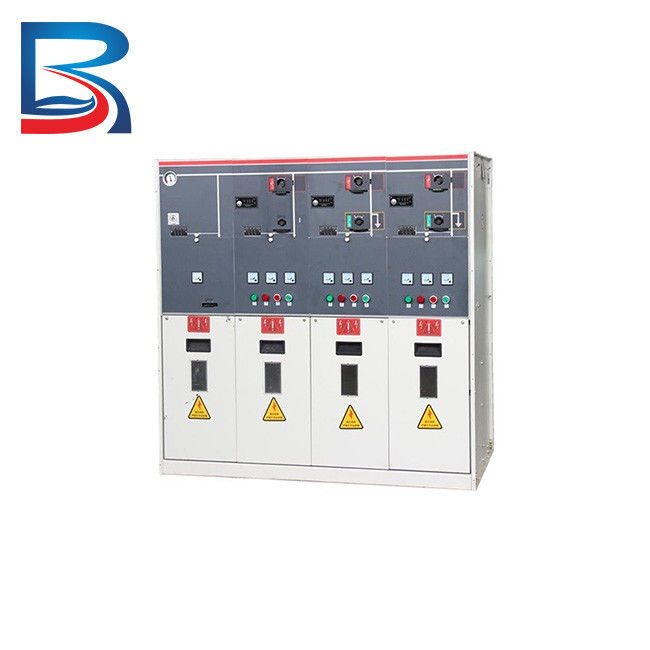

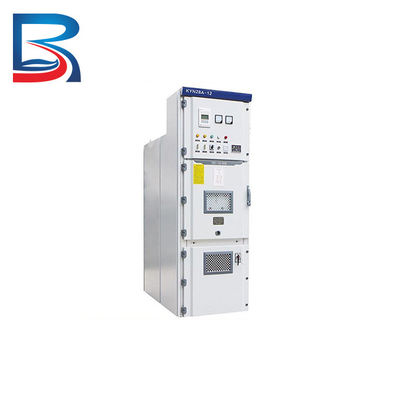

HV Withdrawable 40.5KV High Voltage Switchgear Control Panel

HV Withdrawable 40.5KV High Voltage Switchgear Control Panel

  • HV Withdrawable 40.5KV High Voltage Switchgear Control Panel
  • HV Withdrawable 40.5KV High Voltage Switchgear Control Panel
HV Withdrawable 40.5KV High Voltage Switchgear Control Panel
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: High Voltage Switchgear Control Panel ODM/OEM: Accepted
Color: As Required Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

HV Withdrawable High Voltage Switchgear

,

HV Withdrawable 40.5KV Switchgear Control Panel

,

HV Withdrawable Switchgear Control Panel

HV Withdrawable Rated Voltage 40.5KV High Voltage Switchgear Control Panel





Product  Description



  • HV withdrawable rated voltage 40.5KV high voltage switchgear control panel is a type of switchgear designed for high voltage power systems.
  • The switchgear is rated for a voltage of 40.5KV and is capable of withdrawing the LV and HV components of the system for maintenance purposes.
  • The control panel is designed with a modular structure, which allows for easy installation and maintenance.
  • The switchgear includes circuit breakers, disconnect switches, protective relays, and other devices enclosed in a metal housing filled with insulating gas.
  • This switchgear is suitable for various applications, including power distribution in industrial plants, infrastructure projects, and commercial buildings.
  • The switchgear is designed with safety in mind, and strict safety standards are followed during installation, operation, and maintenance.
  • HV withdrawable rated voltage 40.5KV high voltage switchgear control panel is a reliable and efficient solution for high voltage power systems.





Main Technical Parameters



Main Technical Parameters Specifications
Rated voltage 40.5KV
Rated frequency 50Hz
Rated current of the main busbar 1250A, 1600A, 2000A
Rated insulation level 1min power frequency withstand voltage 95KV between phases and relative, 115KV for the first isolating joint
Lightning impulse withstand voltage 185KV between phases and relative, 215KV for the first isolating joint
1min power frequency withstand voltage of the auxiliary control circuit 2KV
Dimensions (widthdepthheight) 1400*2800(3000)*2800
Rated current of branch busbar 630A, 1250A, 1600A





Engineering



1.Power generation plants



2.Substations



3.Commercial buildings



4.Data centers



5.Renewable energy systems



6.Transportation
