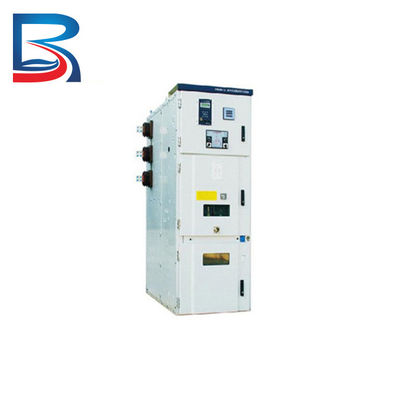

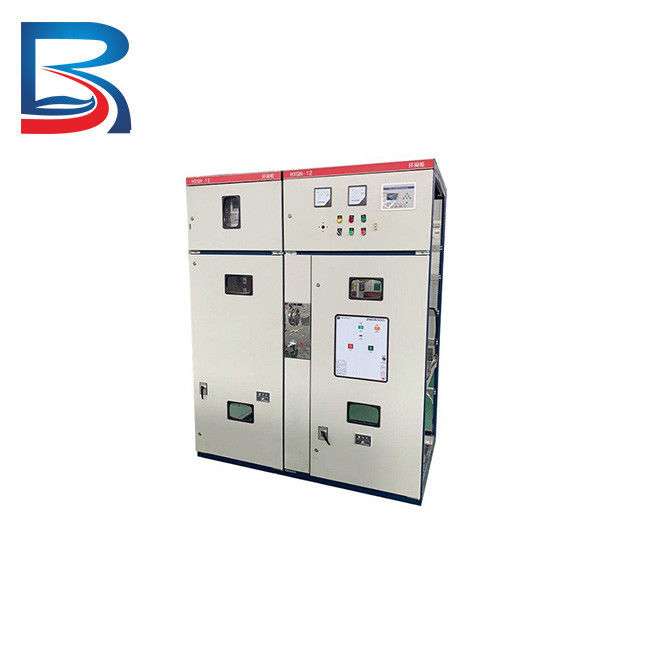

Metal Clad Switchgear Air Insulated Electrical Switch Cabinet for Railway

Metal Clad Switchgear Air Insulated Electrical Switch Cabinet for Railway

  • Metal Clad Switchgear Air Insulated Electrical Switch Cabinet for Railway
  • Metal Clad Switchgear Air Insulated Electrical Switch Cabinet for Railway
Metal Clad Switchgear Air Insulated Electrical Switch Cabinet for Railway
Product Details:
Place of Origin: Chongqing
Brand Name: Bosun
Certification: ISO9001, CE, CQC,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 999 - 9999 USD
Packaging Details: Wooden case
Delivery Time: 15 Working Days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 PCS per Month
Contact Now
Detailed Product Description
Product Name: Electrical Switch Cabinet ODM/OEM: Accepted
Color: As Required Certificate: ISO,9001 CQC,CCC,CE
Payment: T/T L/C Packing: Wooden Case
High Light:

metal clad switchgear Air Insulated

,

Electrical Switch Cabinet For Railway

,

Air insulated metal enclosed switchgear

Metal Clad Metal Enclosed Air Insulated Electrical Switch Cabinet for Railway



Product  Description



The metal clad metal enclosed air insulated electrical switch cabinet for railway is designed with a metal-clad metal outer shell to ensure the safety and reliability of electrical equipment, preventing accidental contact and interference from external environments.

It also features an air-insulated design, enabling it to operate in harsh environments such as high altitude and high humidity. It is suitable for 50Hz AC power systems with rated voltages of 3kV, 6kV, and 10kV. The cabinet can be equipped with various types of electrical components, including circuit breakers, isolation switches, and grounding switches to meet different power system requirements.

Additionally, its compact design takes up minimal space, making installation and maintenance more convenient.

The advantages of the metal clad metal enclosed air insulated electrical switch cabinet for railway are mainly reflected in the following aspects:

  • Safety and reliability: The metal-clad metal outer shell design effectively protects electrical equipment from accidental contact and interference from external environments, improving the reliability and safety of the electrical equipment.
  • Adaptability to harsh environments: The air-insulated design allows the cabinet to operate in harsh environments such as high altitude and high humidity, making it suitable for the complex working environment of railway power systems.
  • Flexibility: The cabinet can be equipped with various types of electrical components to meet different power system requirements, demonstrating high flexibility and adaptability.
  • Compactness and high efficiency: The cabinet's compact design takes up minimal space, making it convenient to install and maintain, which can significantly save space and labor costs for railway power systems.

Compared with other scenarios, the advantages of the metal clad metal enclosed air insulated electrical switch cabinet for railway are mainly reflected in its adaptation to the special requirements of railway power systems. Railway power systems have high voltage, high current, high frequency characteristics, and complex working environments, requiring high safety and reliability. The metal-clad metal outer shell design and air-insulated design of the cabinet can effectively meet the requirements of railway power systems and ensure the safety and reliability of electrical equipment. Moreover, the cabinet's flexible and compact design can also be applied to other power system scenarios that require high safety and reliability.



Main Technical Parameters



Main Technical Parameters Specifications
Rated voltage 40.5KV
Rated frequency 50Hz
Rated current of the main busbar 1250A, 1600A, 2000A
Rated insulation level 1min power frequency withstand voltage 95KV between phases and relative, 115KV for the first isolating joint
Lightning impulse withstand voltage 185KV between phases and relative, 215KV for the first isolating joint
1min power frequency withstand voltage of the auxiliary control circuit 2KV
Dimensions (widthdepthheight) 1400*2800(3000)*2800
Rated current of branch busbar 630A, 1250A, 1600A





FAQ



1. Are you the manufacturer or trader?

"Bosun Electrical " is a leading & professional manufacturer in China.



2. How to order your products?

Please send us your single line diagram (SLD ) for your projects ,or send us the detailed specifications for your required items

.

3. What is your delivery & after-sales serive?

Leading delivery is according to your order qty .Normally for container orders it is 1-2 weeks. Per month 30-50 containers are no problem for us.



4. What is your product warranty?

"Bosun Electrical " is ISO9001 & CCC certificated enterprise in China, we supply longlife free maintenance.

Furthermore,our technology team & RD team can go to solve any possible or inevitable problems by our latest technology support.



5.Do you accept OEM and ODM?

Yes



6. What is your payment terms?

a. 30% T/T in advance as deposit ,balanced against the shipping documents and copy of B/L

b. irrevocable L/C at sight for order which order amount is over $0.1 million .

C. for old business partner,we can negociate for other special terms

d . For samples, we accept T/T,Western union, Alibaba pay,Alibaba trade assurance



7. If i want to visit you ,how to do ?

Our company is located in Chongqing city China, If you need invitation letter before come to China,we can give it to you.
